12 Bin Storage Rack

61

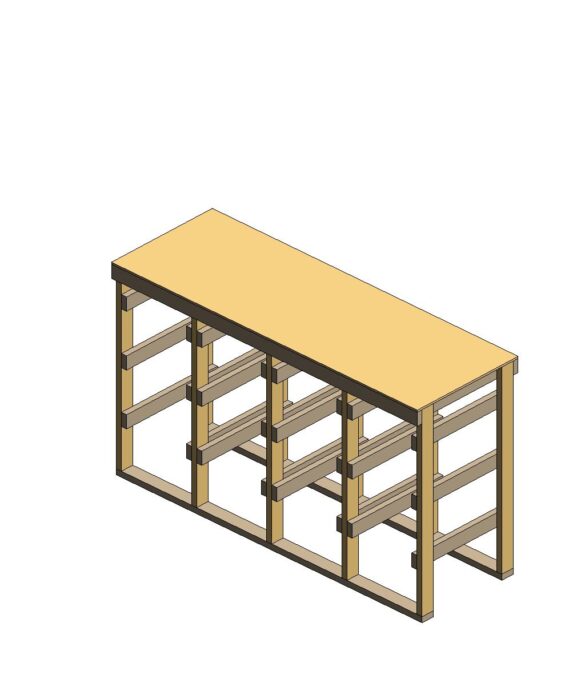

Step 1: Overview

Before diving into the build, let’s consider some important factors. Think about where you’ll place the rack and what items you’ll store. This will help dictate the height and width of your storage solution. Additionally, consider the weight of the items; ensuring that your structure can support the load is crucial.

A sturdy and cost-effective storage solution, this DIY 27-gallon 12 bin storage rack is perfect for organizing your garage or workshop. Built entirely from 2×4 lumber and a plywood top, this 12 bin storage rack provides a solid structure to hold multiple storage bins securely. With the 12 bin storage rack, you can easily categorize and access your items. Follow these seven steps to complete the build and create your very own 12 bin storage rack!

When selecting your materials, remember that quality counts. Choose a durable wood type that can withstand the weight and potential wear over time. Treated lumber is a great option if your storage rack will be exposed to moisture.

When considering the design of your 12 bin storage rack, think about the types of items you will store. This will influence the layout and functionality of your 12 bin storage rack.

Customizing your 12 bin storage rack is easy. Adjust the dimensions to fit your specific items, ensuring your 12 bin storage rack meets all your organization needs.

If you’re looking for a customizable solution, this rack can be adjusted based on your needs. Whether you have larger bins or smaller tools, you can modify the dimensions accordingly. The beauty of a DIY project is the ability to create something that suits your specific requirements.

Materials Needed:

• 2×4 lumber
• 1/2-inch plywood
• Wood screws
• Measuring tape
• Circular saw or miter saw
• Drill and bits
• Level
• Clamps

Be sure to check out various designs of the 12 bin storage rack online to get inspiration and ideas for your own project.

---

The base of your 12 bin storage rack is crucial for stability. Make sure it is well-constructed to support the weight of all the bins.

In this section, we will cover both the tools and techniques necessary for a successful build. If you’re new to woodworking, don’t hesitate to reach out to local hardware stores for advice or even watch online tutorials for visual guidance.

Step 2: Assemble Base

Start by cutting your 2x4s to size for the base frame. Assemble a rectangular frame using wood screws and wood glue for added strength. Ensure the frame is square and level before securing it in place.

Steps:

1. Cut four 2x4s to the desired base dimensions.
2. Arrange them into a rectangle.
3. Drill pilot holes and use screws to attach them securely.
4. Check for squareness using a carpenter’s square.

As you assemble the 12 bin storage rack, pay close attention to the alignment of each section to ensure a sturdy build.

---

Step 3: Wall Assembly Overview

The next steps will focus on assembling the vertical supports and sidewalls of the rack. Ensure all measurements align before proceeding to avoid any fitting issues.

Key Considerations:

• The front and side walls should be the same height.
• Pre-drill holes for easier assembly.
• Use wood glue to reinforce joints.

Step 4: Assemble Wall Front

Cut and assemble the front frame of the rack using 2x4s. This frame will support the weight of the storage bins and keep them securely in place.

Steps:

Each sidewall supports the overall structure of your 12 bin storage rack, so ensure they are securely attached.

After the assembly, inspect your 12 bin storage rack to guarantee it is stable and can handle the intended storage load.

The sidewalls are critical for maintaining the stability of the storage unit. When constructing these, think about how the weight will be distributed once the rack is in use. Heavy items should be placed low to the ground for better balance.

1. Cut two vertical 2x4s to the rack’s height.
2. Attach horizontal supports at appropriate heights for bin placement.
3. Secure the frame with screws and glue.
4. Verify the frame is square and level.

Step 5: Assemble Wall Sides

Construct the two sidewalls to provide additional support and stability to the storage rack.

After installing the cross brackets, take a moment to check that everything is aligned and secure. This reinforcement is vital, especially if you plan to store larger bins that could shift the weight distribution.

Steps:

Cross brackets are essential for maintaining the integrity of your 12 bin storage rack, preventing it from swaying or collapsing.

1. Cut vertical and horizontal 2x4s to size.
2. Secure the side frames with screws and glue.
3. Attach them to the base and front wall frame.
4. Double-check for stability and alignment.

---

Step 6: Install Cross Brackets

When installing the top piece of plywood, consider using a thicker sheet for added durability. This can prevent sagging over time, especially if you plan to place heavy items on top.

Finally, ensure the top of your 12 bin storage rack is securely fastened to provide a sturdy foundation for additional items.

Cross brackets add structural strength and prevent wobbling. Use 2×4 braces to reinforce key areas of the rack.

Steps:

1. Measure and cut diagonal braces.
2. Attach them at key stress points using screws.
3. Ensure all brackets are flush with the frame.
4. Check for movement and reinforce if necessary.

Once everything is complete, think about how to maintain your newly built storage rack. Regular checks for any loose screws or warped wood can prolong its life significantly. Additionally, keep the rack organized and declutter regularly to ensure it serves its purpose efficiently.

Step 7: Install Top Piece of Plywood

To complete your storage rack, install a sturdy plywood top to provide additional storage space and enhance durability.

Steps:

1. Cut plywood to match the top dimensions.
2. Secure it with screws along the frame.
3. Sand any rough edges for a smooth finish.
4. Optionally, paint or stain for a polished look.

Your DIY 27-gallon storage rack is now complete! Enjoy a well-organized and efficient storage system for your space. Happy building!
